Detailed introduction

Equipment introduction:

The whole case vacuum pressure testing machine is a automatic multi-function detection system equipment, stable operation speed of 30 m/min, the non-contact on-line detection methods. Detection principle is based on the acoustic technology and scanning technology of the world's leading standard.

Acoustic technology is used to detect iron cover sealing container due to low pressure or vacuum degree is not enough quality defects. When container after vacuum test probe, probe a high-energy electromagnetic wave non-contact shock container lid, the lid impact sound, sound with vacuum container has the certain proportion relationship. Through acoustic technology to determine whether the container according to sound quality defects. Unique sound analysis method can achieve high accuracy and continuity.

Scanning technique is used to detect iron cover the lid of the container, deformation degree judged through the lid deformation degree of the container whether there is any quality defect. When container after surface scanning probe, probe for detecting probe proportional to the distance of the lid and the output analog voltage, analog voltage through the data processing system, produce the cover appearance quality values. Unique data analysis method can achieve high accuracy and continuity.

Main structure:

A whole box to check machine integration of the latest digital signal processing technology, full Chinese menu, color touch screen operation simplifies the man-machine communication. Display can show the product all the parameters setting and adjustment, can store 10 different parameters of the products. System functions include other independent programmable struck output, struck for product defects. Independent programmable module can make the following setting: smite containers, keep container, encoder, hit the lights, alarm and DaQi state output. Using the standard configuration of eight test probe (four vacuum, four scan) of the products in the cabinet vacuum degree is not enough, less up cans, cans, reverse cans, and so on and so forth implementation.

Configuration instructions:

◆Main controller, days lang/architecture dual-core, 90 nm NVM technology and ART adaptive real-time memory accelerator, 210 dmips, multiple AHB bus matrix and multi-channel DMA, integrates the new DSP and FPU instruction, using a real-time operating system, operating temperature range to 40 ° C to + 85 ° C;

◆Display the brand: wei lun (Taiwan) 10.1 inch screen, 800 x480 resolution

◆Delixi electrical components brand: phoenix schneider (international first-line brand), such as

◆High-speed encoder: Switzerland imports, hard alumina NEM4 Ip65

◆Japan imported pneumatic strip: cylinder, carton material stainless steel 304, Ip65

◆Electromagnetic valve: American imports

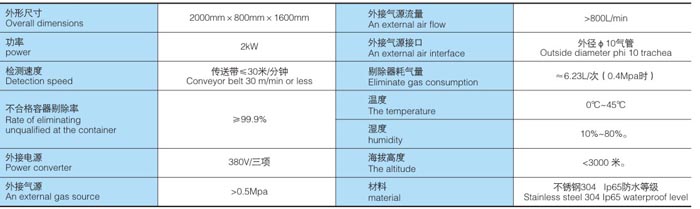

Technical parameters:
