Detailed introduction

TJZDJ15 VACUUM Inspector

Equipment introduction:

The device for high speed online vacuum testing equipment, its working principle, probe a high-energy electromagnetic wave non-contact shock container lid, the lid impact sound, sound with vacuum container has the certain proportion relationship. Unique sound analysis method can achieve high accuracy and continuity. Implementation (bottle) of the production line of tank body internal vacuum test, if there is not a vacuum pot (bottle), the immediate feedback, out.

TJYDJ15 PRESSURE Inspector

Equipment introduction

The device for high speed online pressure testing equipment, its working principle is that when the container through the surface scanning probe probe for detecting probe proportional to the distance of the lid and the output analog voltage, analog voltage through the data processing system, produce the cover appearance quality values. Immediate feedback and out.

TJZYDJ15 COMBINATION OF VACUUM

PRESSURE Inspector

Equipment introduction

The device for high speed online combination of vacuum, pressure testing equipment, its working principle is:

1. Vacuum probe an energetic electromagnetic wave non-contact shock container lid, the lid impact sound, sound with vacuum container has the certain proportion relationship. Unique sound analysis method can achieve high accuracy and continuity.

2. When the container after surface scanning probe, probe for detecting probe proportional to the distance of the lid and the output analog voltage, voltage simulation through the data processing system, produces the cover appearance quality value immediate feedback, out.

Review

My company more than three detection machine and removing device can realize the height, width adjustment, and bring their own highly digital display, easy operation. Internal program can store up to 10 kinds of product data, can realize different cans on a production line, bottle detection and removing.

The appearance of the device, replacing the cumbersome manual inspection, to avoid the artificial detection error detection, residual, and so on and so forth. Implement high-speed automatic vacuum online inspection, pressure test, no cover, large side tank inspection, double lid, pour tank inspection, full inspection, reverse tank up cans, etc. I also alarm prompt application of consecutive punches, the unique combination of network remote control (optional), to create the most accurate quality control system for the customer.

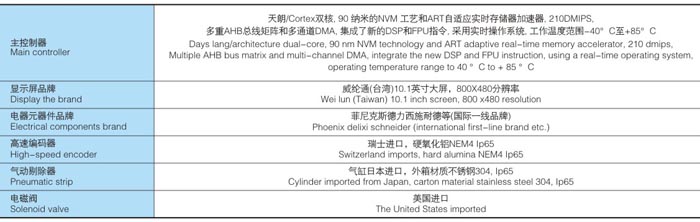

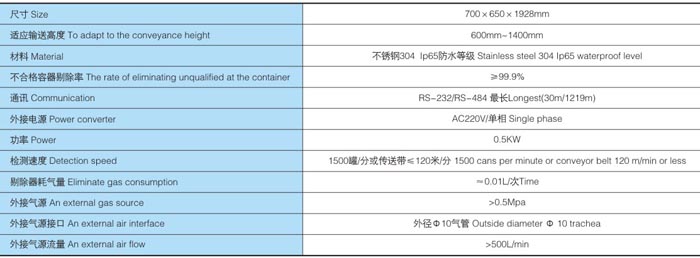

Technical parameters:

Configuration instructions:
